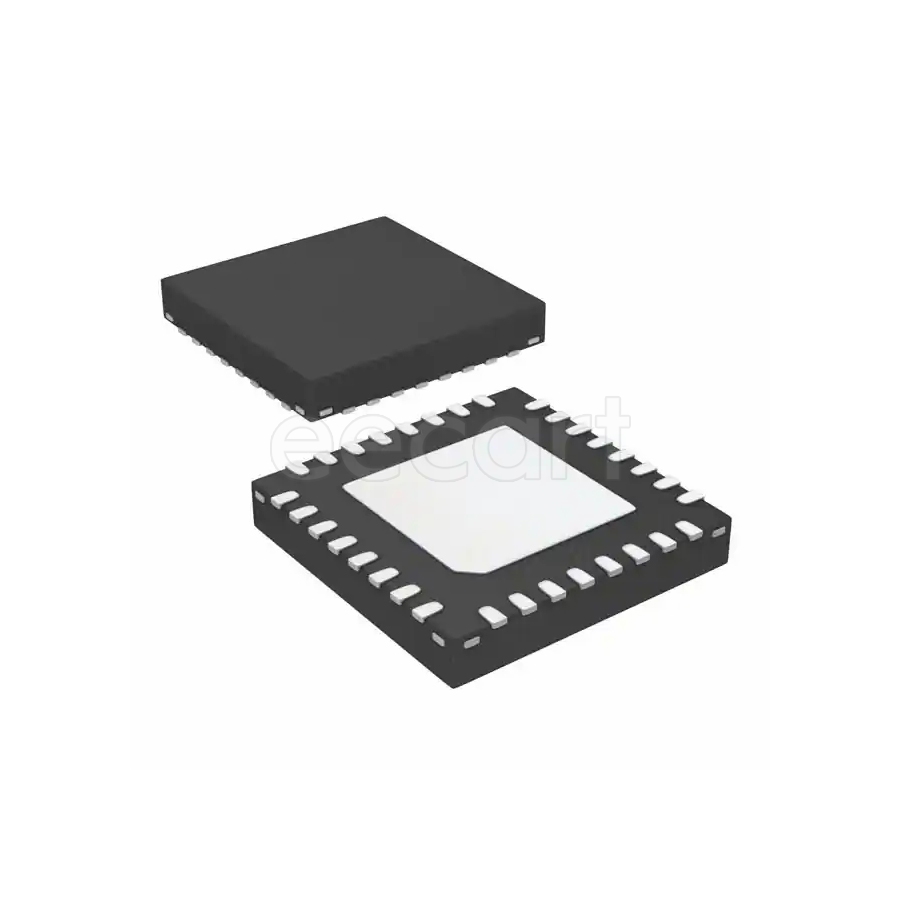

LPC1114FHN33/302:5
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
LPC1114FHN33/302:5
Datasheet:
Description:
Microcontrollers HVQFN-32 SMD/SMT 32 bit 32 kb FLASH
| Parameter | Value |
|---|---|
| Length | 7.1 mm |
| Width | 7.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 33 |
| Height | 1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 50 MHz |
| Core Architecture(core/core processor) | ARM |
| Interface | I²C, SPI, SSP, UART, USART |
| Memory Size | 32 kb |
| Memory Type | FLASH |
| Number of I/Os | 42 |
| Peripherals | I²C |
| Operating Supply Voltage | 3.3 V |
| Max Power Dissipation | 1.5 W |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.8 V |
| Number of ADC Channels | 8 |
| Max Frequency | 50 MHz |
| RAM Size | 8 kB |
| Data Bus Width | 32 bit |
| Number of PWM Channels | 13 |
| Number of Programmable I/O | 42 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Schedule B | 8542310000 |
| Max Clock Frequency | 50 MHz |
| ADC Resolution | 8 bit |
| RoHS | Compliant |
| Packaging | Reel |
| Oscillator Type | Internal |
